Laser Cutting Machine for PCD PCBN Tools

Product Details:

Supply Ability : 1000 Set sets Per Year
Share Your Product:

60000-80000 USD ($)

Get a Price/Quote

Request To Call Back Send Inquiry

Price And Quantity

Minimum Order Quantity 1 Set
Price Range 60000.00 - 80000.00 USD ($)
Price 60000-80000 USD ($)

Trade Information

FOB Port SHENZHEN
Payment Terms Paypal, Western Union, Telegraphic Transfer (T/T)
Supply Ability 1000 Set sets Per Year
Delivery Time 30 Days
Sample Available Yes
Sample Policy Free samples are available
Packaging Details wooden packing
Main Export Market(s) Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia
Main Domestic Market All India
Certifications CE, FDA

Product Description

ZT-JG3S laser cutting machine is mainly used for precision cutting ultra-hard materials PCD PCBN CVD etc. for satifying customers' special purpose, we can also produce customization machine.

Design Features

All of the advanced cutting process and concepts directly fix in natural marbel, more stable, precision and durable
High speed precisiong cutting , thinner kerfs, saving material
Cutting speed is 100mm/min for one side cutting of 1.6mm thickness PCD
Cutting width is 0.05-0.12mm
Cutting area: 250x250mm
Machine can working 24 hours and cut any 2D shape, software can use automatic and manual operation.

Product details

Wave length	1064nm
Frequency	1-50HZ
Pulse Width	120us
Max Output power	More than 90W
Power Instability	Less than 4% (Mean Square)
Laser source	YAG
Beam Full Divergence	7-8
Repositioning Accuracy	0.01mm
Table Travel	300x300x50mm
Load	30kg
Max Speed	600mm/min
Focus Adjusting Range	More than 30mm
Cutting Width	Less than 0.15mm
Heat Affected Zone	Less than 0.05mm
Cooling Capacity	7200W - 8400W
Rated Power	13KW
Dimensions	2400x900x1700mm (LxWxH)
Weight	800kgs

CHN-TOP SCI & TECH CO., LTD.

Describe Your BUYING Requirement *

* Tips on getting accurate quotes. Please include product name, order quantity, usage, special requests if any in your inquiry.

+ Add Attachment

Email *

Mobile No.*

Name *

Company Name *

Pincode *

City *

Other Products in 'Laser Cutting Machine for PCD PCBN diamond ' category

Laser Lapping Machine for PCD PCBN Blank General Use : Lapping PCD/PCBN blank Voltage : 100 Watt (w) Product Type : Laser lapping machine Dimension(L*W*H) : 1500*1100*1500 Millimeter (mm) CNC Or Not : CNC Table Slide Way : Double V Type Rail Material : Cast Iron Fuel Tank Capacity : 1 Liter (L) Computerized : Yes Weight (kg) : 800 Kilograms (kg) Warranty : 12 MONTHS Grinding Wheel Size : No grinding wheel Control System : PLC Control Automatic : Yes Table Size : 200*200 Power : 380 Volt (v) Grinding Length : no grinding wheel Magnetic Chuck Size : Laser lappng Price : 6000070000 USD ($) Minimum Order Quantity : 1 Capacity : 80 T/hr Color : Other Type : CNC Milling Machine, Gear Grinding Machine, Feed Grinding Machine Feature : High Efficiency, Lower Energy Consumption, Low Noise, ECO Friendly, High Performance Grinding Wheel Speed : No grinding mm/m WorkingSpeed : No Spindle Speed : 100 mm/m Floor Space : Stand

Send Inquiry

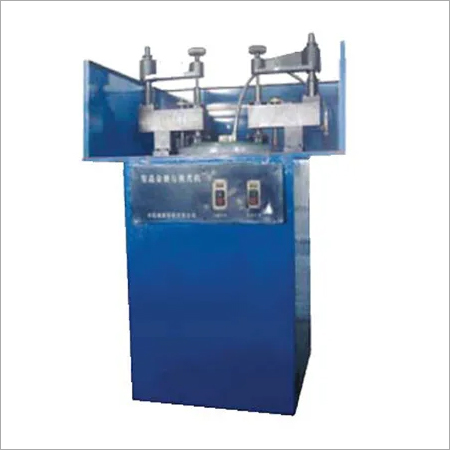

Polishing Machine for PCD PCBN CVD PDC cutter General Use : Used for PCD PCBN CVD CERAMIC carbide surface polishing Voltage : 1100 Watt (w) Product Type : Polishing machine Dimension(L*W*H) : 900*740*1200 Millimeter (mm) CNC Or Not : Normal Table Slide Way : V Type Rail Material : Cast Iron Fuel Tank Capacity : 12 Liter (L) Computerized : Yes Weight (kg) : 420 Kilograms (kg) Warranty : 12 months Grinding Wheel Size : 250*25*50.8 Control System : Manual Automatic : No Table Size : 250*250 Power : 380 Volt (v) Grinding Length : 100 Magnetic Chuck Size : 250*25*50.8 Price : 1500020000 USD ($) Minimum Order Quantity : 1 Capacity : 2pcs T/hr Color : Blue Type : Edge Milling Machine, CNC Milling Machine, Surface Grinding Machine, Feed Grinding Machine Feature : High Efficiency, Lower Energy Consumption, Low Noise, ECO Friendly, High Performance Grinding Wheel Speed : 1400 RPM WorkingSpeed : 1400 Spindle Speed : 10 RPM Floor Space : Stand

Send Inquiry

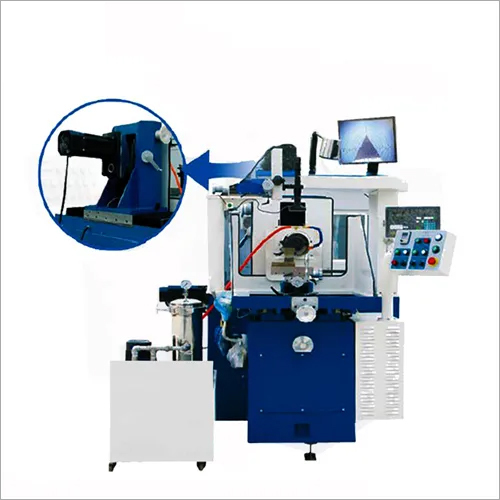

Tool Grinder for PCD PCBN Diamond Tools General Use : PCD PCBN Diamond tools grinding Voltage : 380 Volt (v) Product Type : Diamond Tools Dimension(L*W*H) : 1200*1168*1530 Millimeter (mm) CNC Or Not : Normal Table Slide Way : V Type Rail Material : Cast Iron Fuel Tank Capacity : 13 Liter (L) Computerized : Yes Weight (kg) : 1420 Kilograms (kg) Warranty : 12 Grinding Wheel Size : 150*40*40mm Control System : Manual Automatic : Yes Table Size : 210*160mm Power : 380 Volt (v) Grinding Length : 170mm Magnetic Chuck Size : 1200*1168*1530mm Price : 4500050000 USD ($) Minimum Order Quantity : 1 Capacity : 1.5 Ton/day Color : Blue Type : Edge Milling Machine Feature : High Performance, Lower Energy Consumption, Low Noise, ECO Friendly Grinding Wheel Speed : 04200 RPM WorkingSpeed : 042000
